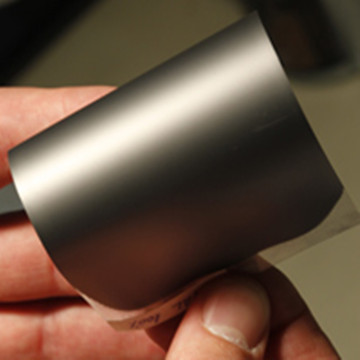

DGH High-performance thermal graphite film

DGH high-performance thermal graphite film is a thermal interface material which is very thin, synthetically made, and has high thermal conductivity, and is made from a higly oriented graphite polymer film.It is ideal for providing thermal management/heat-sinking in limited spaces or to provide supplemental heat-sinking in addition to conventional means. This material is flexible and can be cut into customizable shapes.


Key properties:
1.Excellent thermal conductivity:700 to 1300 W/m.k (2 to 4 times as high as copper,3 to 6 time as high as aluminum)
2.Light weight: Specific gravity:0.85 to 2.17 g/cm3 (1/4 to 1/10 of copper,1/1.3 to 1/3 of aluminum in density)
3.Flexible and easy to be cut or trimmed(withstands repeated bending)

Applications:
Cellular phone, DVC,PC and peripherals, pickup ,Semiconductor manufacturing equipment, MID table PC, Game Console, Optical communications equipment

Physical properties:

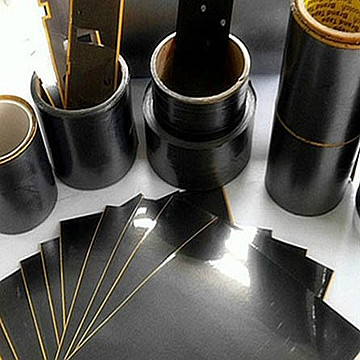

Configurations available:customized sheet form, roll form.
