Product Name:
DGS Thermal graphite sheet
Model No.:
DGS

Product Description

DGS Thermal graphite sheet

The DGS thermal graphite sheet is a kind of totally new thermal & radiating material, heat conducting evenly along vertical & horizontal direction, shielding with heat and component while improving the performance of the consumer electronic products.

Key property:
● Ultra-high thermal conductive performance / easy to operate
● Low thermal resistance
● Light weight

Application:
● IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone

Physical properties:

Test item	Test method	Unit	DGS Test value	DGS+B Test value	DGS+PET Test value
Color	Visual		Black	Black	Black
Material			Natural graphite	Natural graphite	Natural graphite
Thickness	ASTM D374	Mm	0.03to 1.0	0.2to 1.5	0.2to 1.5
Specific Gravity	ASTM D792	g/cc	1.5	0.9to 2.0	1.5to 1.8
Continuous Use Temp	EN344	℃	-40to +400	-40to +400	-40to +400
Tensile Strength	ASTM F-152	kpa	715	715	715
Hardness	ASTM D2240	Shore A	80	80	>80
Flame Rating	UL 94		V-0	V-0	V-0
Conductivity (vertical direction)	ASTM D5470	w/m-k	20	15	5
Conductivity(horizontal direction)	ASTM D5470	w/m-k	300 to 500	300 to 500	300 to 500

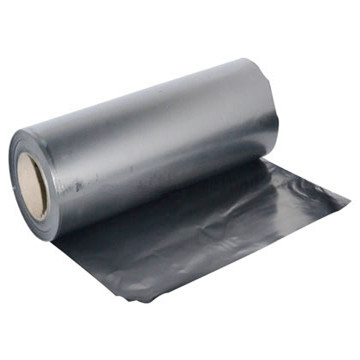

Configurations available: standard roll form of 1000mm*100M, customized sheet, die-cut form.
