DTT series Thermal silicon tube

Home > Insulation material > DTT series Thermal silicon tube

[Return Home] [Go Back]

Product Name:
DTT series Thermal silicon tube
Model No.:
DTT

Product Description

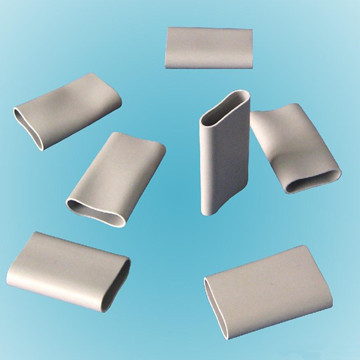

DTT series Thermal silicon tube

DTT series silicon-based, thermally conductive tube is tube shape product designed with fiberglass & silicon as basic material and made through special processing. Because of its excellent thermal conductivity, insulation, shock resistance and easy installation, the product is widely used in fever transistor, diode and audion, made it can installed directly on theheating tube while Using the product.

The DTT series is suggested to used for low-stress application environment.

Typical application:
●Home appliances, Electronic Components
Machine (Heat resistance, insulation, fire prevention, etc.),

Instructions:
●LS-100A---general silicon tube
●LS-200A---high tension silicon tube
●LS-300A---FDA silicon tube
●LS-400A---silicon-based, thermally conductive tubes
●LS-500A--- fire prevention silicon tube

Test item	Test method	Unit	LS test value
Test item	Test method	Unit	DTT-100A	DTT-200A	DTT-300A	DTT-400A	DTT-500A
Color	Visual		transparent	transparent	transparent	Grey	White
Specific Gravity	ASTM D792	g/cm3	1.2±0.1	1.2±0.1	1.2±0.1	1.7±0.1	1.5±0.1
Hardness	ASTM D2240	Shore	50/70	60	50/70	50	65
Tensile Strength	ASTM D412	kg/cm2	≥60	≥100	≥60	≥30	≥35
Tensile Strength	ASTM D412	pa	5.8*10¹⁰	≥9.8*10¹⁰	≥5.8*10¹⁰	≥3.0*10¹⁰	≥3.4*10¹⁰
Continuous use Temp		℃	-30~+200	-30~+200	-30~+200	-40~+200	-40~+250
Elongation	ASTM D412	%	180	180	180	180	180
Voltage Endu Ance	ASTM D149	KV/mm	≥6	≥6	≥6	≥6	≥6
Flame Rating	UL-94		—	—	—	—	V-0
Thermal Conductivity	ASTM D5470	w/m-k	—	—	—	1.2	—
Thermal Resistance	ASTM D5470	℃/w	—	—	FDA	—	—
